Introduction

As consumer electronics evolve toward slimmer, higher-performance designs, heat output from internal components keeps increasing. Thermal management is critical to end-user experience.

With superior heat spreading performance, Vapor Chambers (VC) are the mainstream thermal solution for mid-to-high-end 3C devices. However, ultra-thin and high-seal requirements create big challenges for traditional segmented production: complex process hand-offs, heavy manual work and unstable quality, which limit capacity growth and cost optimization.

To solve these industry challenges, UW Laser’s 3C Electronics Division has independently developed the UW All-in-One Edge-Sealing Welding Station for Ultra-thin VC. This precision laser processing solution for 3C and thermal manufacturing helps the supply chain address precision joining and high-efficiency heat dissipation.

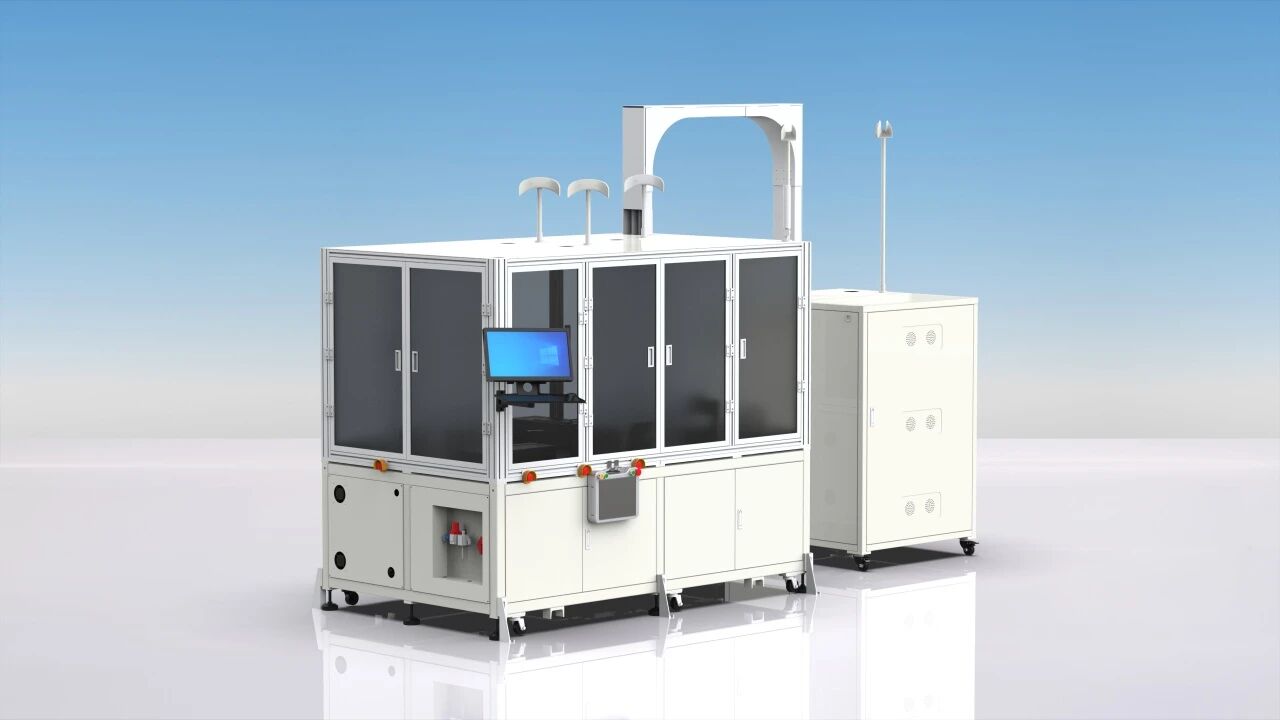

UW All-in-One Edge-Sealing Welding Station for Ultra-thin VC

Designed for high-precision mass production of vapor chambers, this integrated smart machine combines multiple processes. It eliminates pain points of conventional segmented production: complicated workflows, high manual dependency and inconsistent quality.

Ideal for mass-producing ultra-thin VC for consumer electronics, new energy and industrial control sectors, it processes stainless steel, copper and other materials. It is key equipment for the industry to lower costs and achieve intelligent manufacturing upgrades.

For full-process integration, the system integrates five core steps: stainless-steel mesh laser cutting, magazine-type auto-feeding, spot welding, visual inspection and laser edge-sealing welding. It enables fully automatic workflow with no-manual transfer, realizing one-stop closed-loop production from raw materials to finished goods.

High-precision laser cutting produces smooth, burr-free and distortion-free cuts, meeting dimensional accuracy requirements for ultra-thin sheets. Magazine-type auto-feeding supports bulk storage and precise auto-alignment, avoiding offset, missing or mis-fed parts caused by manual loading. Reliable spot welding secures stainless-steel and copper substrates against shifting during processing to ensure structural stability. The embedded HD industrial vision system identifies dimensional errors, flaws, cold and missing welds, enabling in-line quality control and automatic defective-part sorting. The final laser edge-sealing welding delivers narrow heat-affected zone, compact uniform seals and excellent airtightness. It stably preserves the internal vacuum of vapor chambers, securing heat-dissipation performance and service life at source.

Regarding mass-production reliability, the standard-built anti-static system reduces electrostatic interference to avoid substrate breakdown and dust adsorption, ensuring production cleanliness and safety. Its intelligent anomaly-monitoring system monitors machine status, station conditions and material supply in real time. Upon detecting material shortage, jamming, position shift, overload or overheating, the unit shuts down automatically with audio-visual alarms. It avoids equipment damage, workpiece scrap and safety risks, keeping the production line running steadily.

Core Advantages

High-level Automation for Significant Cost Reduction & Efficiency Gains

Featuring fully-automated end-to-end operation, the equipment only requires minimal manpower for on-site inspection and material replenishment. Compared with conventional standalone machines involving manual loading/unloading and segmented processing, it greatly cuts manual intervention and process waiting time, eliminates human-induced errors, boosts production capacity, lowers labor and rework costs, and enables high-efficiency mass production with lean staffing.

Flexible Model Changeover for Multi-variant Production

Built with modular quick-change clamping structures, the system allows fast fixture switching and commissioning for VC vapor chambers of various specifications. No modification to main equipment programs or mechanical structures is needed. It supports multi-model, small-batch and customized orders with high equipment utilization, well adapting to fast-iterating product requirements.

Broad Material Compatibility & High Versatility

With optimized process parameters, the equipment reliably processes multiple heat-dissipation base materials including stainless steel and copper for cutting, spot welding and edge sealing welding. The all-in-one unit covers diverse production scenarios and reduces capital expenditure on equipment for manufacturers producing multiple product variants.

Stable Processes for High Yield Rate

Leveraging dual quality control via automatic positioning and machine vision, it delivers consistent process standards throughout production and resolves poor consistency caused by manual processing. Precise dimensional control, stable spot welds and reliable sealing are maintained during long-term continuous mass production, delivering superior batch quality and higher overall yield.

Equipment Application Value

Through process integration and technical optimization, this equipment systematically addresses common industry pain points in traditional VC vapor-chamber manufacturing: low efficiency, high costs, unstable quality and poor adaptability. It caters to both large-volume standardized mass production and flexible customized orders. It empowers enterprises to realize intensive, intelligent and refined VC production, substantially improving operational benefits and product competitiveness. Meanwhile, it delivers robust equipment support for thermal module supply within the 3C electronics industrial chain.

·END·

Shifting from fragmented, labor-intensive conventional segmented production to the full-process closed-loop and intelligently-controlled integrated solution, the UW Ultra-thin VC Vapor Chamber Integrated Edge-Sealing Welding Station represents not only UW Laser’s practical process rollout in 3C thermal management manufacturing, but also another solid outcome of precision laser processing enabling consumer electronics industrial-chain upgrading.

Moving ahead, UW Laser will keep advancing precision laser processing technologies. By delivering more reliable equipment and flexible solutions, we will collaborate with industry partners to tackle new challenges in 3C thermal dissipation and precision manufacturing, driving the industry toward greater efficiency, stability and precision.
